Home > Rock and aggregate > Aggregates > Accelerated polishing machine (PSV)

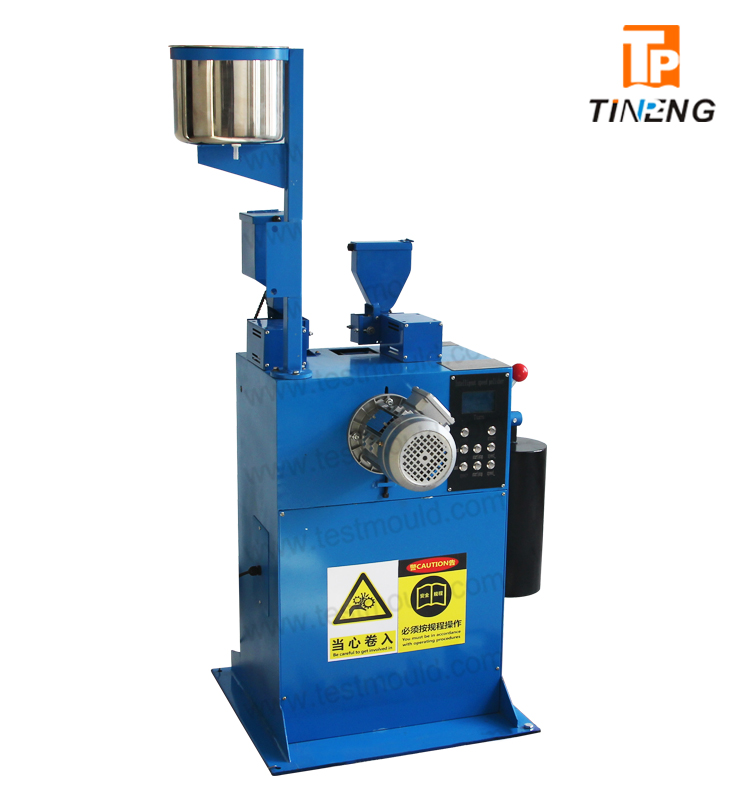

Accelerated Polishing Machine
Accelerated Polishing Machine
Accelerated Polishing Machine
Item No.48-D0525
STANDARD: EN 1097-8, EN 1341, 1342, 1343
(PAVING STONES AND PAVING BLOCKS)
Description
Key Features
Specifications
Accessories

ACCELERATED POLISHING MACHINE

Used to measure the resistance of road stone to the polishing action of vehicle tires on a road surface. This machine provides a method of preparing polished stone specimens for use with the friction tester when used in a laboratory environment.


Dimensions(L x W x H): 550x630x1600 mm(bottle fi tted)

Rated power: 400 W

Road wheel: 15 to 325 rpm

Rubber wheel: Dia. 200x44mm,69IRHD±3IRHD

Applied load on specimens: 715 to 735 N

Feed rates Corn: emery 20 to 34 g/min

Water: 20 to 34 ml/min

Flour emery: 2 to 4 g/min

Water: 5 to 8 ml/min

Power: AC380V 50HZ
