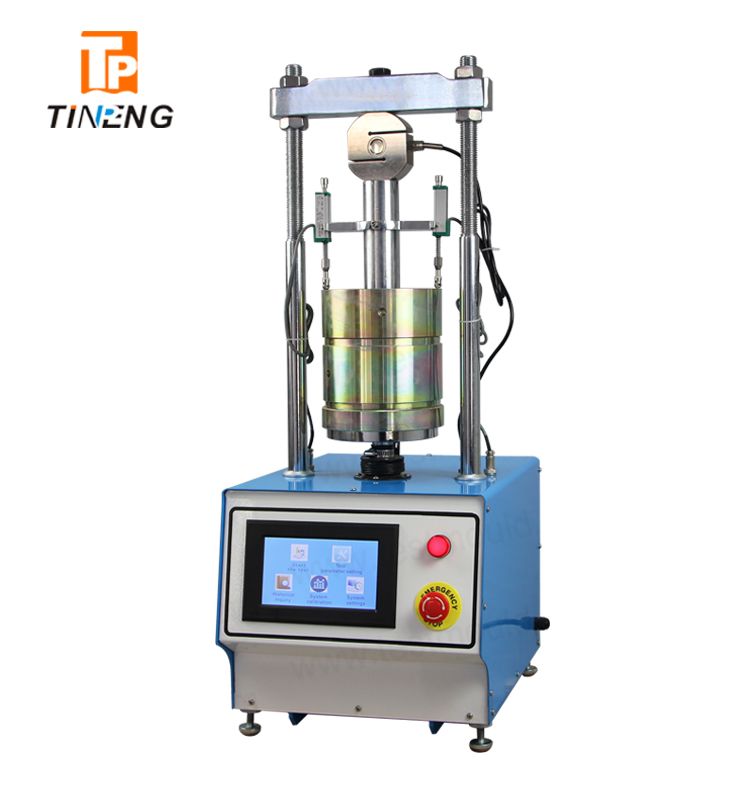

CBR Test Machine

This machine is suitable for test of soils and mix materials  (the grain size of the soil is less than 40mm) compacted  with CBR mold so as to confirm the bearing loading ability  of pavement, roadbed subcrust as well as material layer of  the roadbed to be designed. It consists of a twin column  frame, proving ring, penetration bar, loading plate,  micrometer, measuring device for swell increment etc. and  easy to operate.

Model CTM-02

Maximum load: 50 KN Load

Load ring capacity: 50KN,0.001 mm div.incl

Speed: 1.0mm/min or 1.27 mm/min

Penetration rod: 50 mm x 100 mm

Test mould: 152 mm x 170 mm

Instrument size: 34 x 45 x 88 cm

Instrument weight: 102 Kg

Power: 220V,50Hz,500W

34-T0093 Dial gauge tripod

34-T0092/A Aluminium swell plate

34-T0092/B Brass swell plate

34-T0095/B Split surcharge weight 2 kg,  2.27 kg selectable
