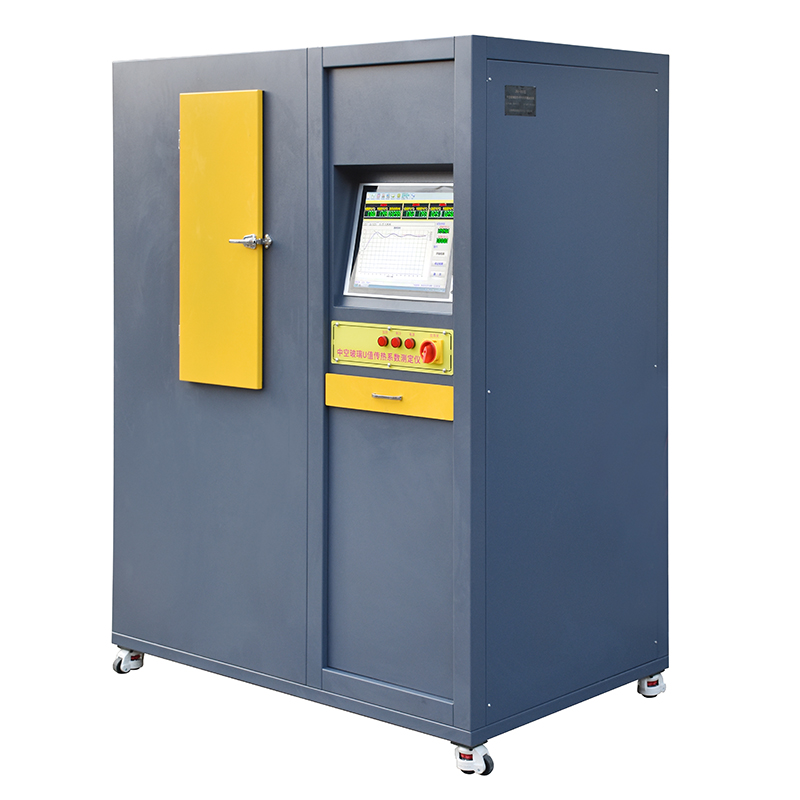

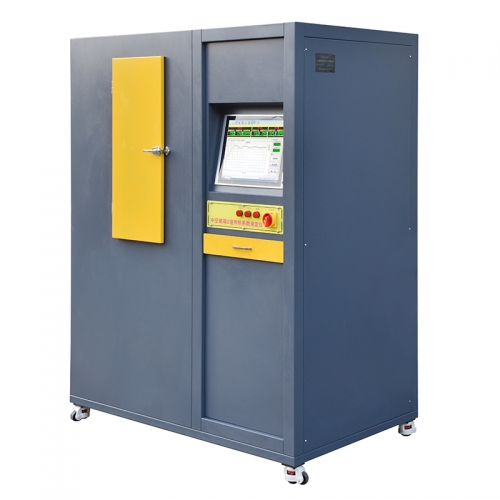

Features:

• Adopting the spring-type clamping structure with national patent, no gas source is needed, the pressure is stable, and the operation is simple, which has played an important role in improving the detection accuracy.

• Advanced temperature control algorithm, while meeting the accuracy requirements, shorten the detection time, so that the first detection process is shortened to 2.5 hours, the second detection process is only 1.5 hours.

• Integrated design, beautiful and generous, easy to install, move the space required.

Specifications:

Overall dimensions (L*W*H): 1470x910x1940 mm;

Gross weight: 300 kg;

Specimen specification (overall dimensions):  800×800 mm;

Specimen thickness: 10 mm; range: 10-110mm

Thermal conductivity measurement range: 0.25~4.5W/(m2.K);

Cold plate temperature: -5℃~40℃;

Hot plate temperature:  ≤80℃;

Cold plate temperature control stability:  0.1℃;

Hot plate temperature control stability:  0.1℃;

Test repeatability:  ±1%;

Flatness: <0.1%

Features:

• Adopting the spring-type clamping structure with national patent, no gas source is needed, the pressure is stable, and the operation is simple, which has played an important role in improving the detection accuracy.

• Advanced temperature control algorithm, while meeting the accuracy requirements, shorten the detection time, so that the first detection process is shortened to 2.5 hours, the second detection process is only 1.5 hours.

• Integrated design, beautiful and generous, easy to install, move the space required.




• Overall dimensions (L*W*H): 1470x910x1940 mm;

• Gross weight: 300 kg;

• Specimen specification (overall dimensions):  800×800 mm;

• Specimen thickness: 10 mm; range: 10-110mm

• Thermal conductivity measurement range: 0.25~4.5W/(m2.K);

• Cold plate temperature: -5℃~40℃;

• Hot plate temperature:  ≤80℃;

• Cold plate temperature control stability:  0.1℃;

• Hot plate temperature control stability:  0.1℃;

• Test repeatability:  ±1%;

• Flatness: <0.1%
