Home > Soil > Soil density test
Relative Density Apparatus
Relative Density Apparatus
Relative Density Apparatus
Item No.33-T0063
EN 13286-5 standard or ASTM D4253,4254 standard
Description
Key Features
Specifications
Accessories

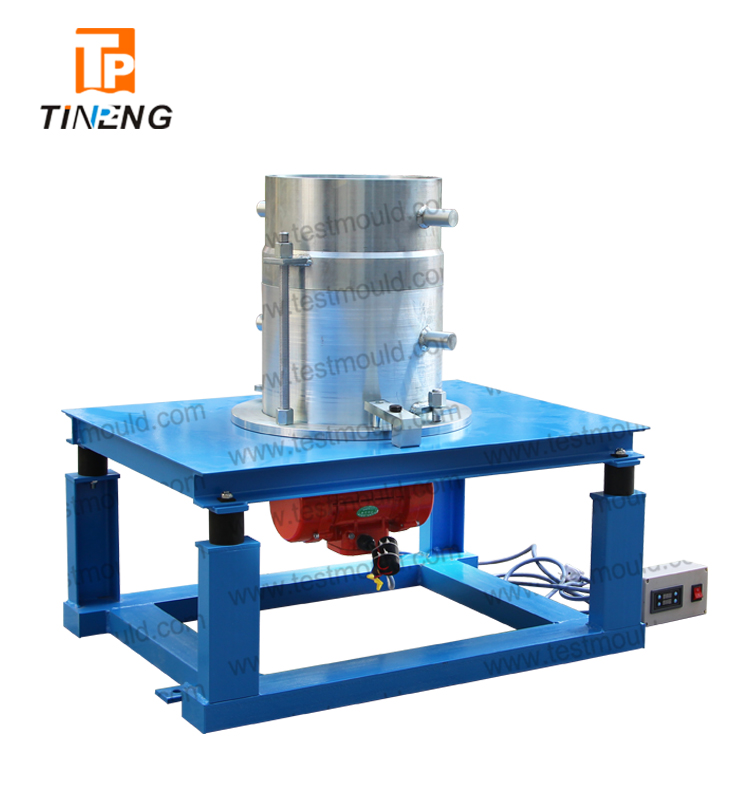

VIBRATING TABLE METHOD RELATIVE DENSITY APPARATUS

This method, in the EN standard, covers the determination of  the maximum dry density and water content of cohesionless  materials when compacted using a vibrating table. Materials  for which yhis method is applicable may contain up to 12%  by mass fines (<0.063 mm). The maximum particle size of the materials to be tested is 80 mm. This method applies to  mixtures to be used in road construction.

EN 13286-5 standard:

33-T0063/3: Cylinder mould: dia. 280±1 mm

33-T0063/4: Guide sleeve: dia. 280±1 mm

33-T0063/6E: Surcharge base plate: dia.277mm

33-T0063/8E: Surcharge weight: for dia. 280±1 mm cylinder mould

ASTM D4253,4254 standard:

33-T0063/3: Cylinder mould: dia. 279.4±13mm

33-T0063/4: Guide sleeve: dia. 279.4±13mm

33-T0063/2: Cylinder mould: dia. 152.4±13mm

33-T0063/5: Guide sleeve: dia. 152.4±13mm

33-T0063/6: Surcharge base plate: dia.276mm

33-T0063/7: Surcharge base plate: dia.151mm

33-T0063/8: Surcharge weight: for dia. 279.4±13mm cylinder mould

33-T0063/9: Surcharge weight: for dia. 152.4±13mm cylinder mould
