Rock shear box apparatus.
Hand operated
The technique enables the engineer to select specimens of rock from exposed faces or bore holes, observe direction of fault lines, then set and test the fault in the shear box.

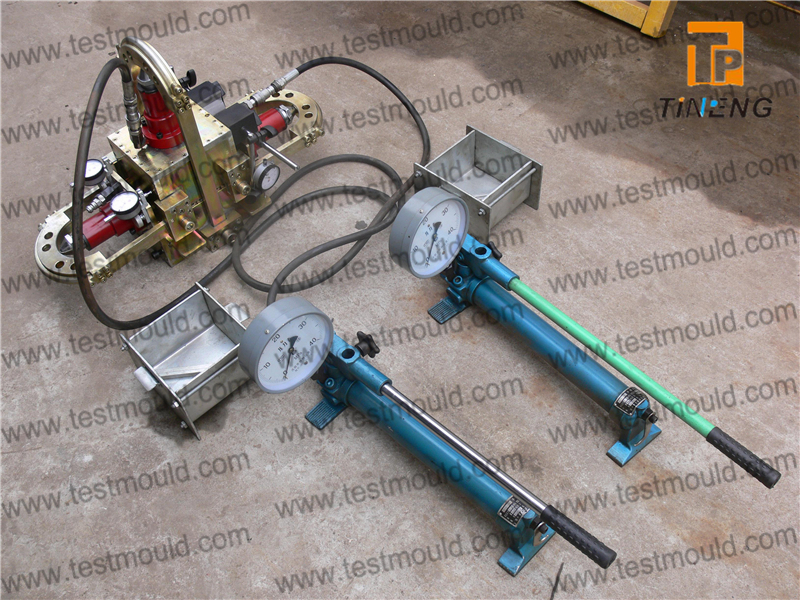

The apparatus consists of a diagonally split box assembly. The upper half incorporates a vertical ram for compressive loading, and the lower half, two horizontal rams for reversible shearing action. The force applied by the horizontal ram is aligned with the centre of the box and the discontinuity in the specimen. Pressure is applied to the rams by means of hand-operated hydraulic pumps.
Specifications:
Dimenison of shear box (mm) 160 ×150 × 200(L×W×H)
Load application Hydraulic via two single speed hand pump
Pressure gauge 40Mpa
Horizontal displacement Dial gauge 10 mm travel x 0.01 mm
Dimension of package(mm) 480×730×250(L×W×H)
Total Weight(Kgs) 80
