testing machine for the construction industrial-zhuozhou tianpeng imp.and exp. trade ltd, Materials testing equipment

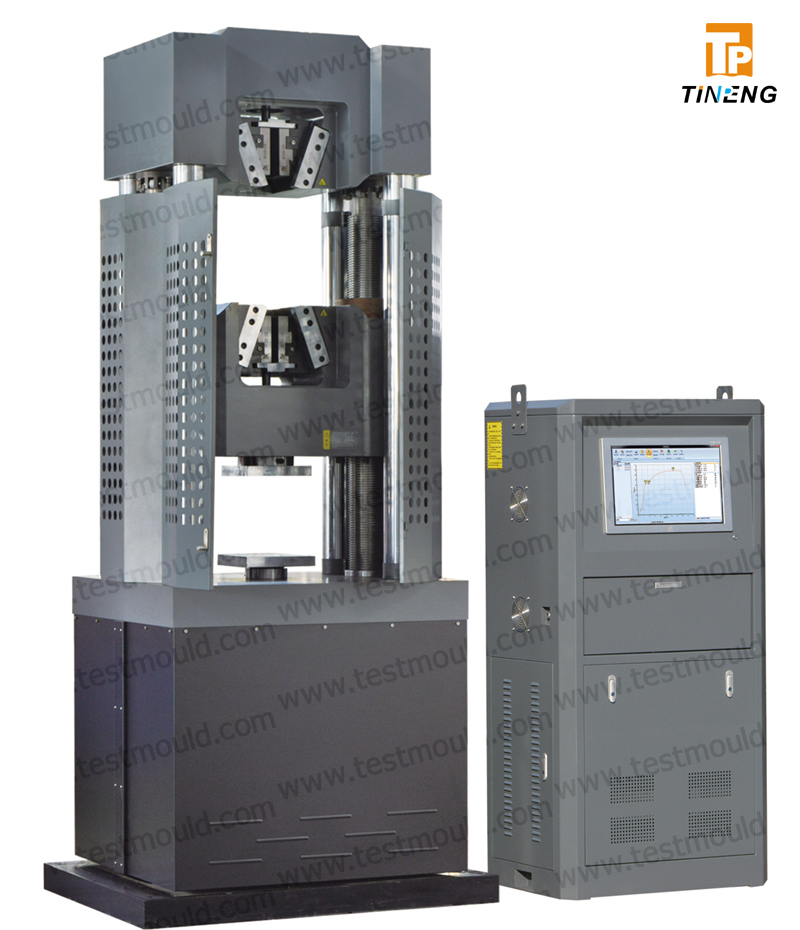

Used for a variety of metal materials, tensile, compression,bending and shear tests can also be used as plastic,oncrete, cement and other non-metallic materials,compression tests, increasing simple accessories to complete tape chain, wire rope, welding rod, tile, and avariety of component performance tests. The machine is mounted under the cylinder, a low profile, light weight,especially for construction sector.

The control system:
1. Electronic measuring, liquid crystal display pilot force -time curve, test power, test power peak, with significant yield characteristics of the material yield strength, the experimental data easy and direct;
2. A digital health input sample number, cross-sectional area can be the direct determination of the material tensile strength, yield strength and other mechanical properties;
3. Test results can be printed.

Code	WAW-100B	WAW-300B	WAW-600B	WAW-1000B
Max load capacity(kN):	100	300	600	1000
Structure type:	Underneath oil cylinder, Four stand column, double screw, Protect cover, Coil spring buffer device
Accuracy class:	Class 1(0.5)
Test force range:	1%-100% F.S
Test force accuracy:	±1%(±0.5%)
Measuring range of extension:	1%-100% F.S
Extension accuracy:	±1%(±0.5%)
Displacement accuracy:	±1%
Displacement resolution:	0.001mm
Relative error of stress-controlled velocity:	±2%(±1%)
Speed setting accuracy:	±1%(±0.5%)
Adjusting range of strain-controlled velocity:	0.00025/s-0.0025/s
Relative of force/extension/displacement-control:	±2%(±1%)
Range of force/extension/displacement-control:	0.3%-100% F.S
Relative error of force/extension/displacement-control:	<=1%
Maximum speed of sentre sill (mm/min)	280
Compression space(mm):	500	600	600	600
Tensile space (mm):	600	700	700	700
Piston stroke (mm):	200	200	200	200
Diameter of round specimen (mm):	Dia. 6-22	Dia.10-32	Dia.13-40	Dia. 14-45
Thickness of flat specimen (mm):	0-15	0-20	0-20	0-40
Maximum distance of bending test (mm):	300	300	300	300
Size of compression plates(mm):	Dia.110	Dia. 150	Dia. 220	Dia. 225
Dimension (load frame mm):	800×620×1850	800×620×1900	800×620×2000	900×700×2300
Dimension (control console mm):	1100×750×900	1100×750×900	1100×750×900	1100×750×900
Power(kW):	2.2	2.2	2.8	2.8
Weight (load frame kg):	300	300	300	300
Weight (control console):	1450	1600	1900	2600
Code	WAWD-100B	WAWD-300B	WAWD-600B	WAWD-1000B	WAWD-2000B
Max load capacity(kN):	100	300	600	1000	2000
Structure type:	Underneath oil cylinder, Four stand column, double screw, Protect cover, Coil spring buffer device
Accuracy class:	Class 1(0.5)
Test force range:	1%-100% F.S
Test force accuracy:	±1%(±0.5%)
Measuring range of extension:	1%-100% F.S
Extension accuracy:	±1%(±0.5%)
Displacement accuracy:	±1%
Displacement resolution:	0.001mm
Relative error of stress-controlled velocity:	±2%(±1%)
Speed setting accuracy:	±1%(±0.5%)
Adjusting range of strain-controlled velocity:	0.00025/s-0.0025/s
Relative of force/extension/displacement-control:	±2%(±1%)
Range of force/extension/displacement-control:	0.3%-100% F.S
Relative error of force/extension/displacement-control:	<=1%
Maximum speed of sentre sill (mm/min)	280	280	280	280	320
Compression space(mm):	550	600	600	600	650
Tensile space (mm):	600	700	700	700	750
Piston stroke (mm):	200	200	200	200	200
Diameter of round specimen (mm):	Dia. 6-22	Dia.10-32	Dia.13-40	Dia. 14-45	Dia. 20-50
Thickness of flat specimen (mm):	0-15	0-20	0-20	0-40	0-40
Maximum distance of bending test (mm):	300	300	300	300	300
Size of compression plates(mm):	Dia.110	Dia. 150	Dia. 220	Dia. 225	220×220
Dimension (load frame mm):	800×620×1900	800×620×2000	900×700×2300	1050×800×2500	1200×900×2850
Dimension (control console mm):	1100×750×900	1100×750×900	1100×750×900	1100×750×900	1100×750×900
Power(kW):	2.2	2.2	2.8	2.8	4.0
Weight (load frame kg):	300	300	300	300	300
Weight (control console):	1550	1850	2550	3200	5500
